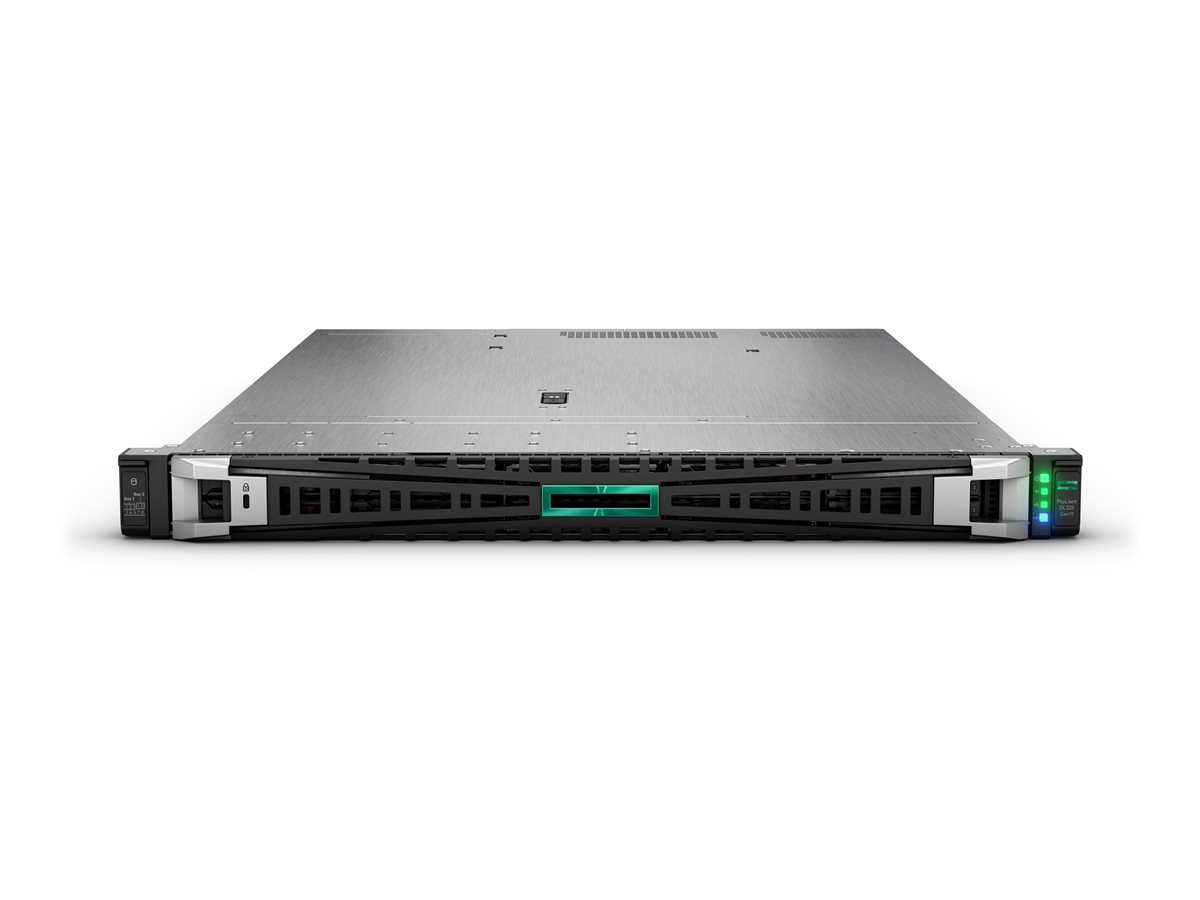

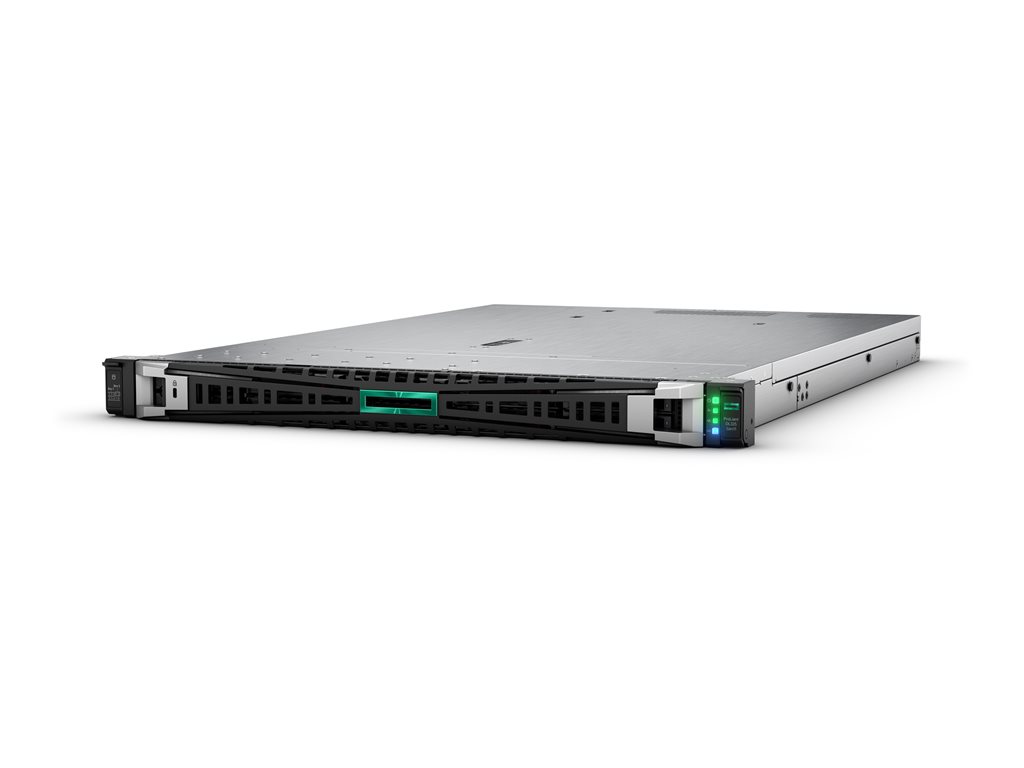

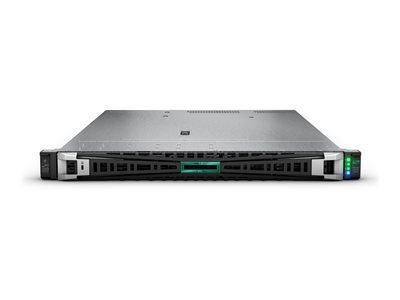

Hewlett Packard Enterprise - HPE ProLiant DL325 Gen11
Server - rack-mountable - 1U - 1-way - 1 x EPYC 9354P / up to 3.8 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 1.92 TB - NVMe - 10 Gigabit Ethernet, 25 Gigabit Ethernet - monitor: none - Smart Choice
Hewlett Packard Enterprise
P72990-005
0190017727813
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL325 Gen11 - rack-mountable - EPYC 9354P 3.25 GHz - 64 GB - SSD 2 x 1.92 TB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: Canada, United States |
| Server Scalability | 1-way |
| Processor | 1 x AMD EPYC 9354P / 3.25 GHz (, up to 3.8 GHz, (32-core) |
| Cache Memory | 256 MB L3 cache |
| Cache Per Processor | 256 MB |
| RAM | 64 GB (installed) / 3 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 1.92 TB - PCI Express - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 10GbE, 25GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.1 in x 25.6 in x 1.7 in |
| Weight | 27.69 lbs |
| Manufacturer Selling Program | HPE Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Canada, United States |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) |

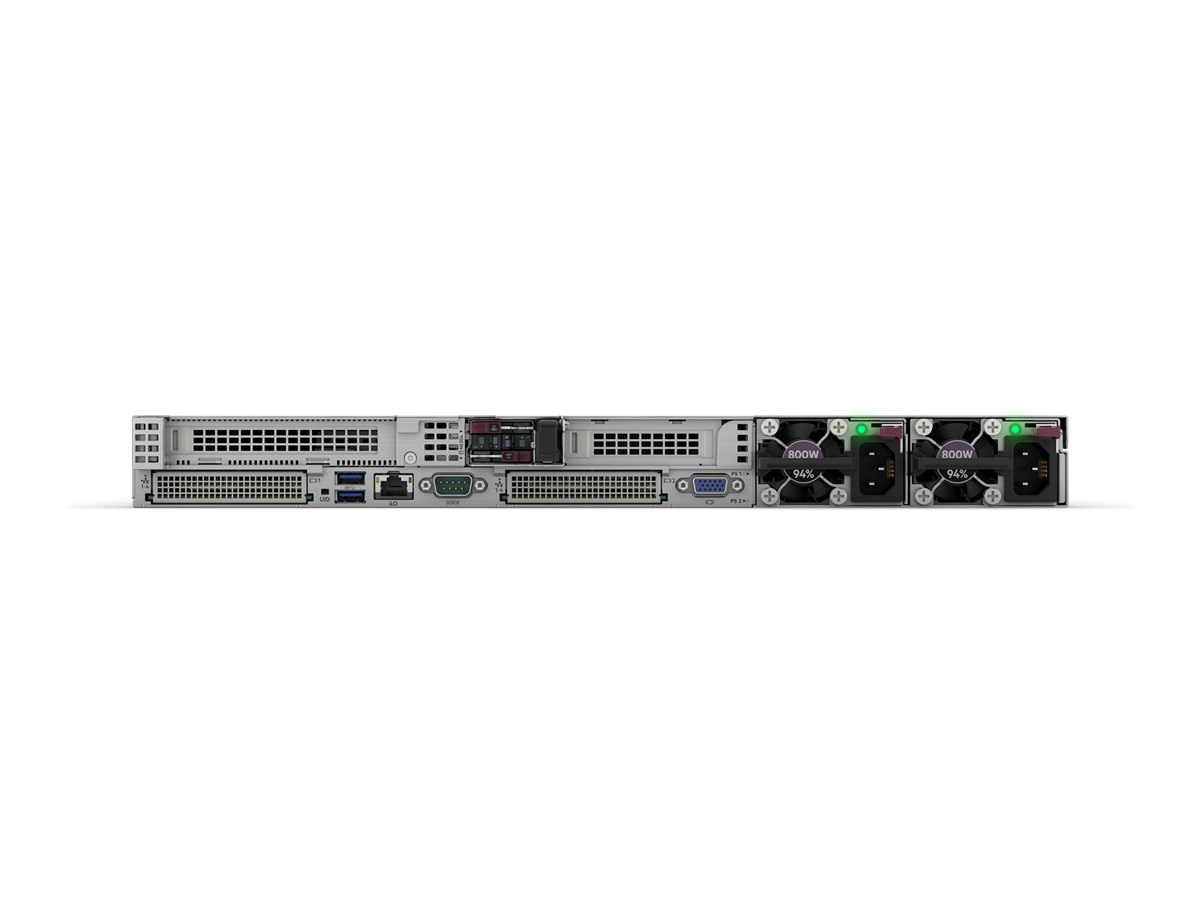

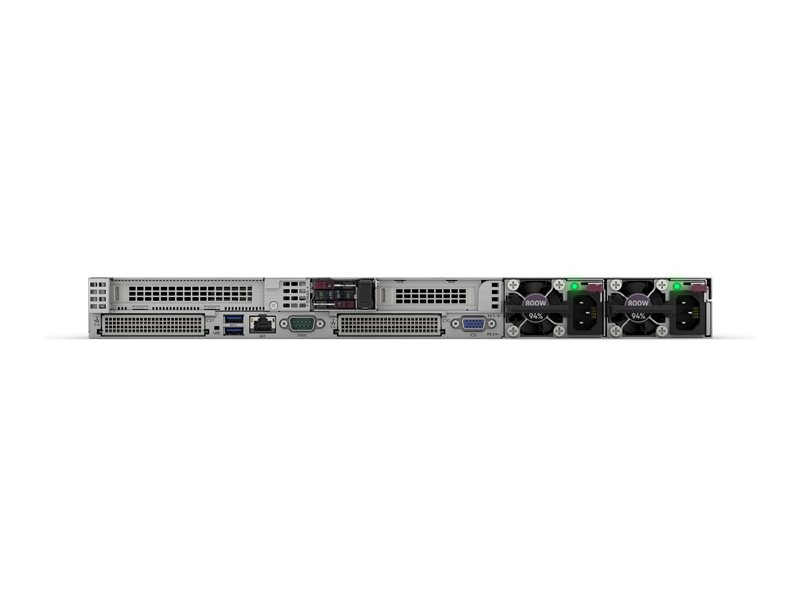

| Interfaces | 1 x HPE iLO (1 in front) (service port) ¦ 1 x HPE iLO - RJ-45 ¦ 1 x VGA ¦ 2 x LAN (10/25 Gigabit Ethernet) - SFP28 ¦ 5 x USB 3.2 Gen 1 (1 front, 2 rear, 2 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | Performance heatsink, 7 x performance fans, HPE Easy Install Rail 2 Kit |
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1, Redfish API, SMBIOS 3.1, UEFI 2.7, APML 1.0, Active Directory v1.0, UEFI Class 3 |
| Manufacturer Selling Program | HPE Smart Choice |
| RAM | |
| Installed Size | 64 GB / 3 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 12 (total) / 11 (empty) |
| Features | Registered, Online Spare Memory, HPE SmartMemory |
| Configuration Features | 1 x 64 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 2 x 10/25 Gigabit Ethernet SFP28 |
| Ethernet Controller | Broadcom BCM57414 |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 256 MB |
| Cache Per Processor | 256 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, VMware vSphere 7.0 (ESXi) Update 3, VMware vSphere 8.0 (ESXi), VMware vSphere 8.0 (ESXi) Update 1, VMware vSphere 8.0 (ESXi) Update 2 |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 1.92 TB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 25.6 in |
| Height | 1.7 in |
| Weight | 27.69 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.6 in |
| Shipping Depth | 36.1 in |
| Shipping Height | 9.5 in |
| Processor / Chipset | |
| CPU | AMD EPYC 9354P |
| Clock Speed | 3.25 GHz |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | 32-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
